duinoCase-Due (for Arduino Due)



11 in stock (can be backordered)


Product description

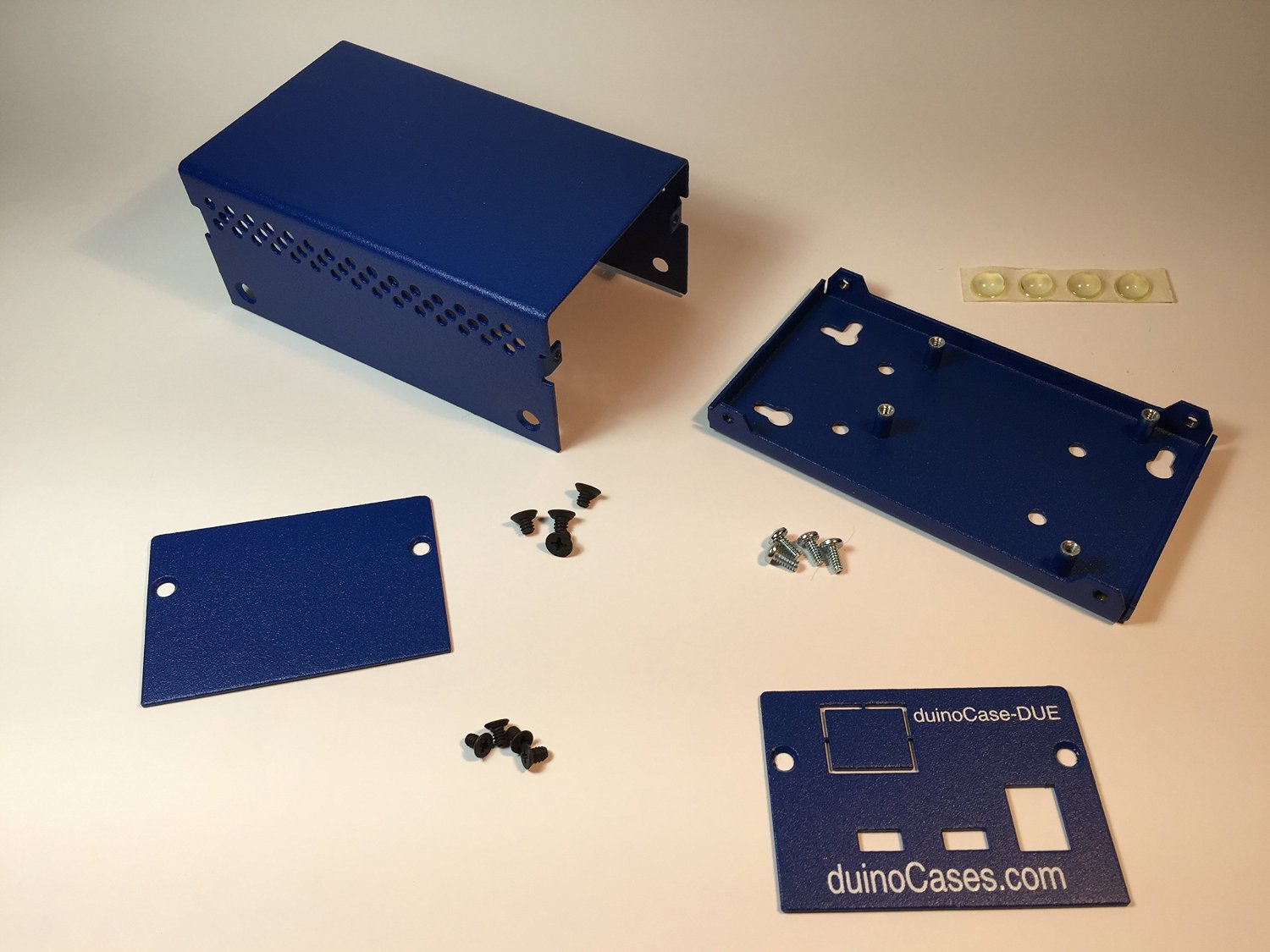

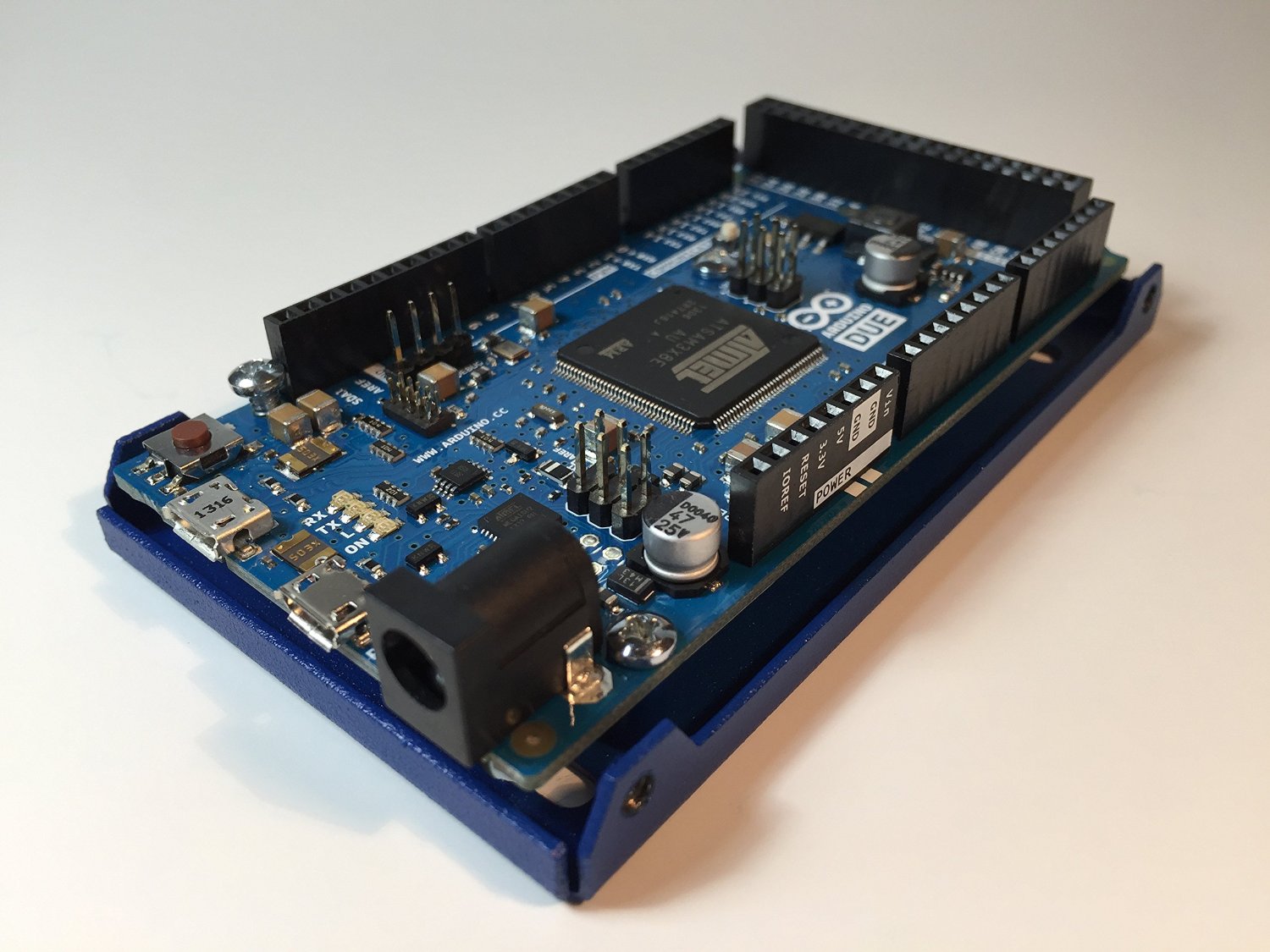

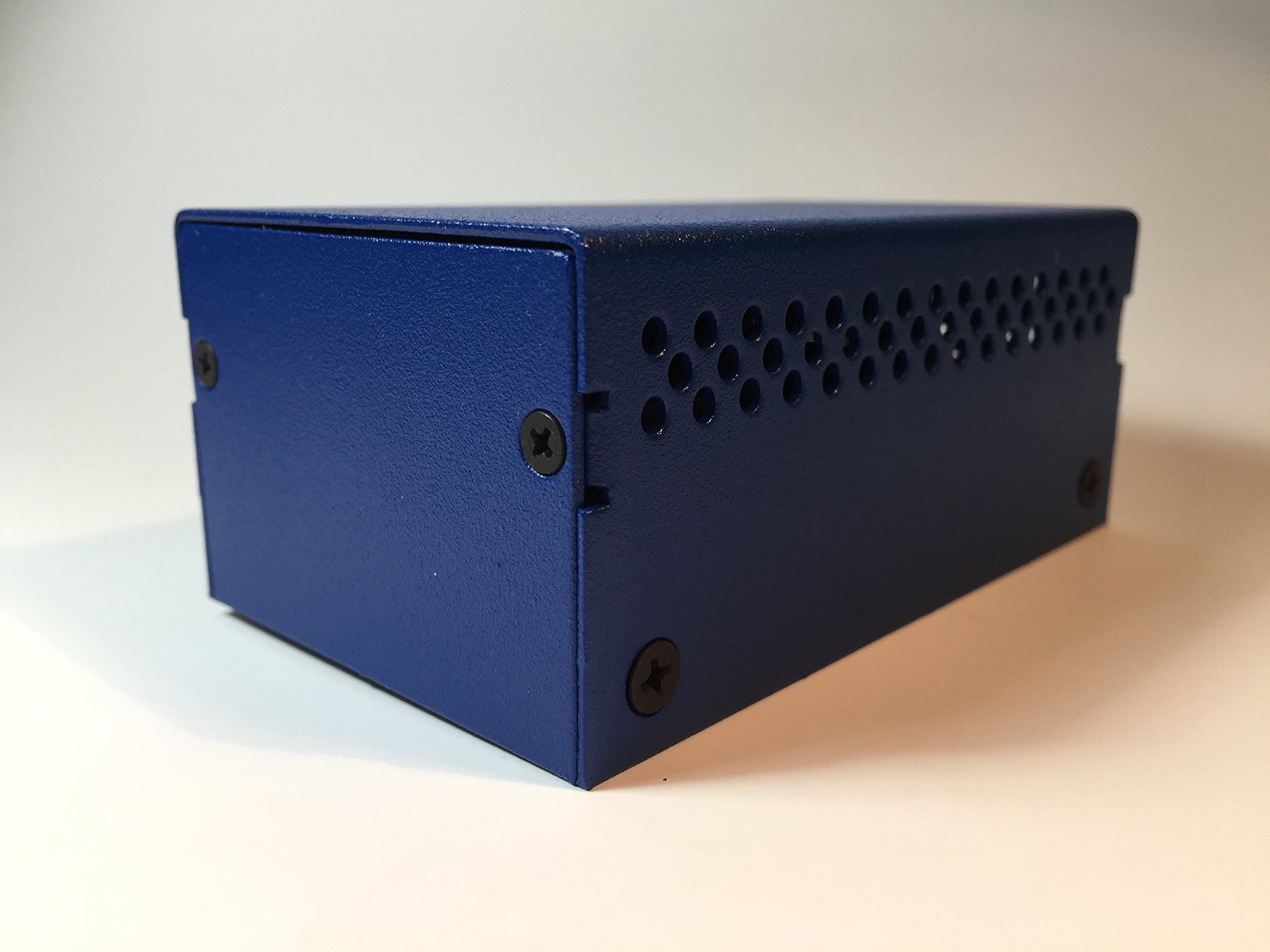

The duinoCase-Due is designed to hold a standard Arduino Due board, and one shield. Based on our Universal v3 enclosure design, there are removable front and rear panels.  The front panel includes openings for the power jack, USB ports, and a knock-out specifically designed for the Ethernet Shield to allow for easy adding of Ethernet communications. The base is slotted and drilled for wall mounting, or adding our optional DIN Rail Mount Kit. Includes stick-on rubber feet, case and board mounting screws. The enclosure is made from common 18 gauge cold rolled A366/1008 mild steel, with a semi-gloss textured blue coating. Dimensions of the enclosure are (approx.) 4.1″ L x 2.5″ W x 1.75″ H

  • Made in the USA
  • Custom design for the Arduino Due
  • Removable Front & Rear Panels | Optional DIN Rail mount kit
  • Commercial | Military | 18 Gauge Steel
  • Semi-Gloss Textured Coating

Additional information

Weight .6875 lbs
Dimensions 4.1 × 2.5 × 1.75 in
