Product Description

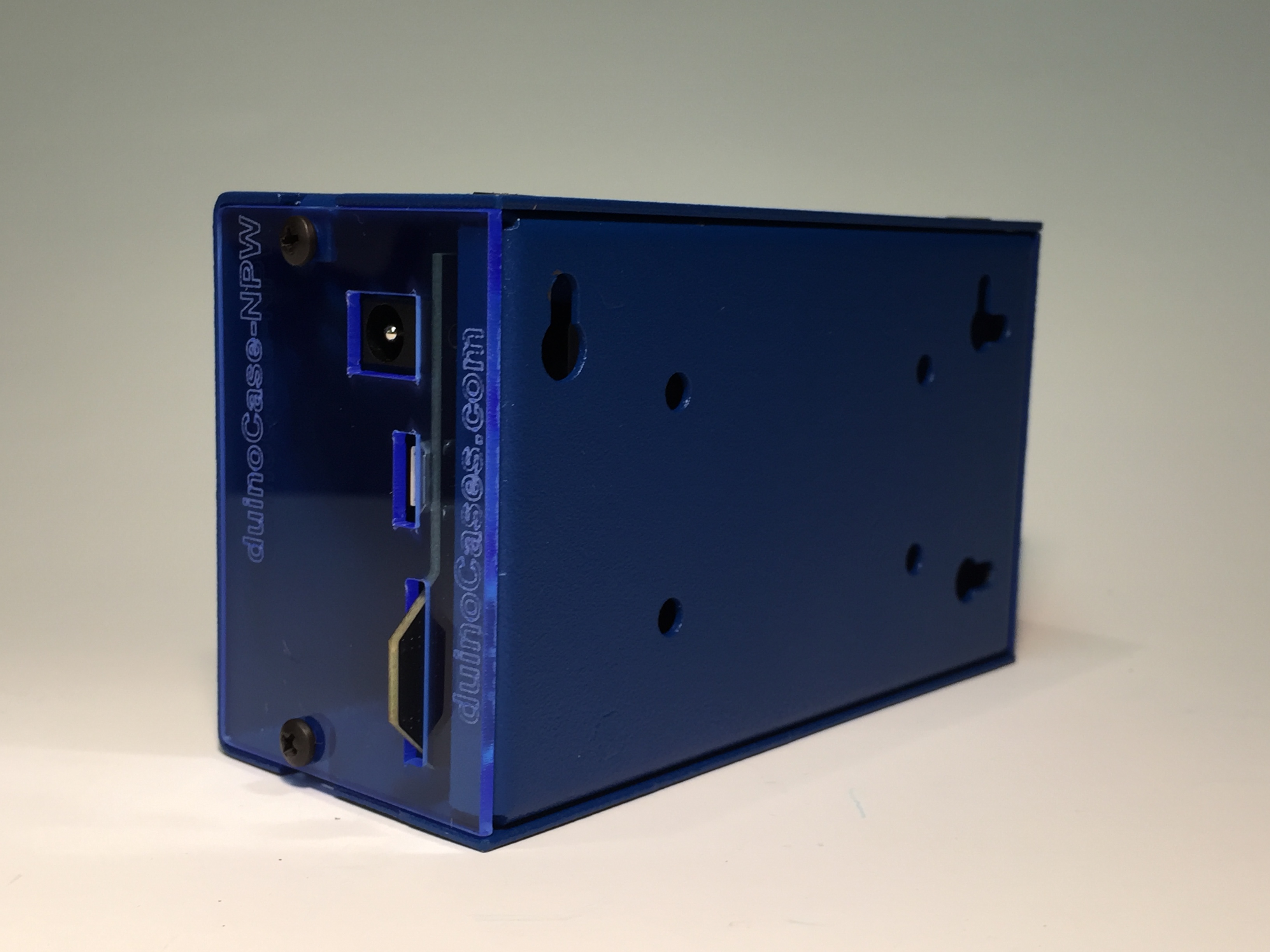

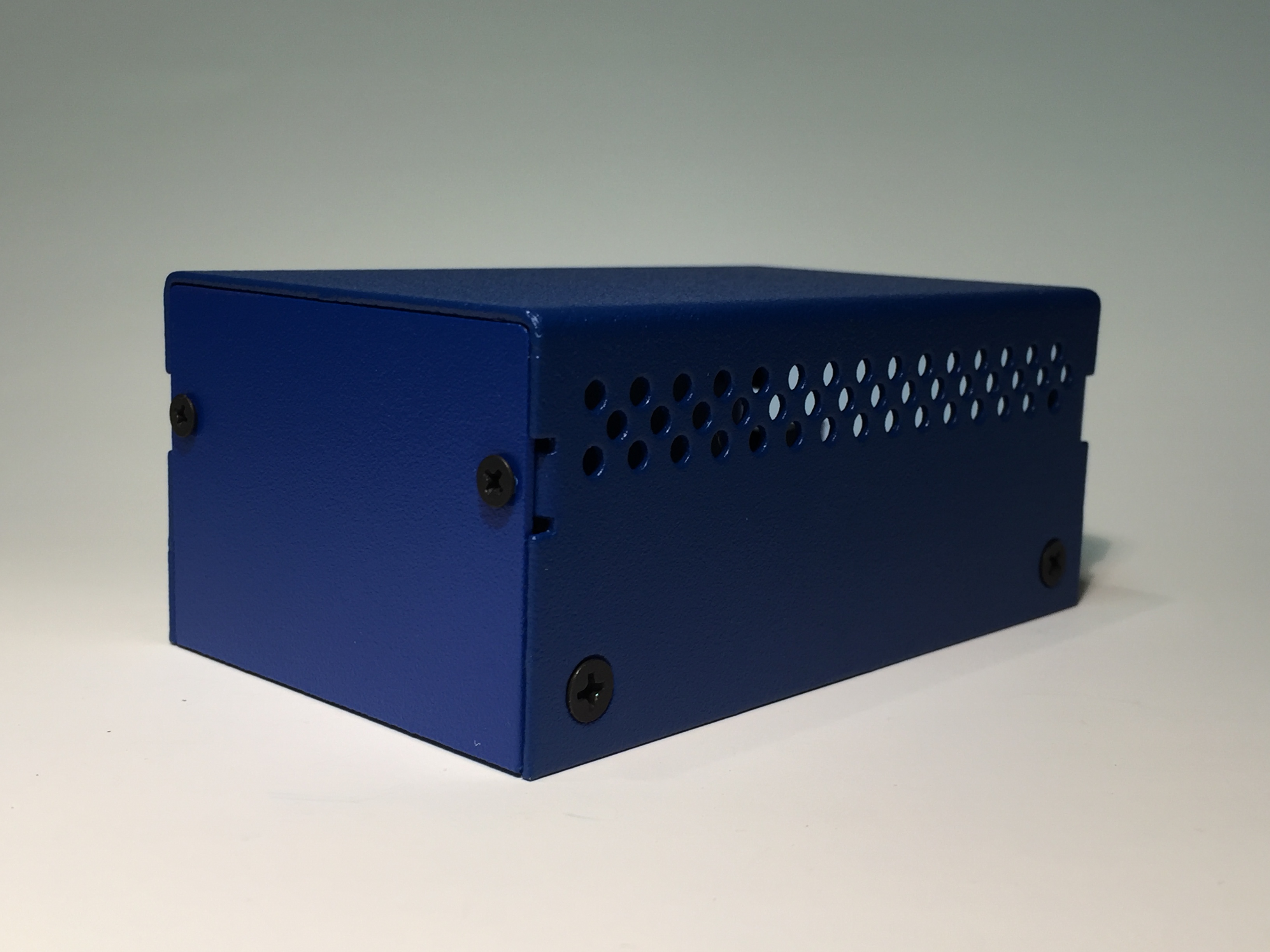

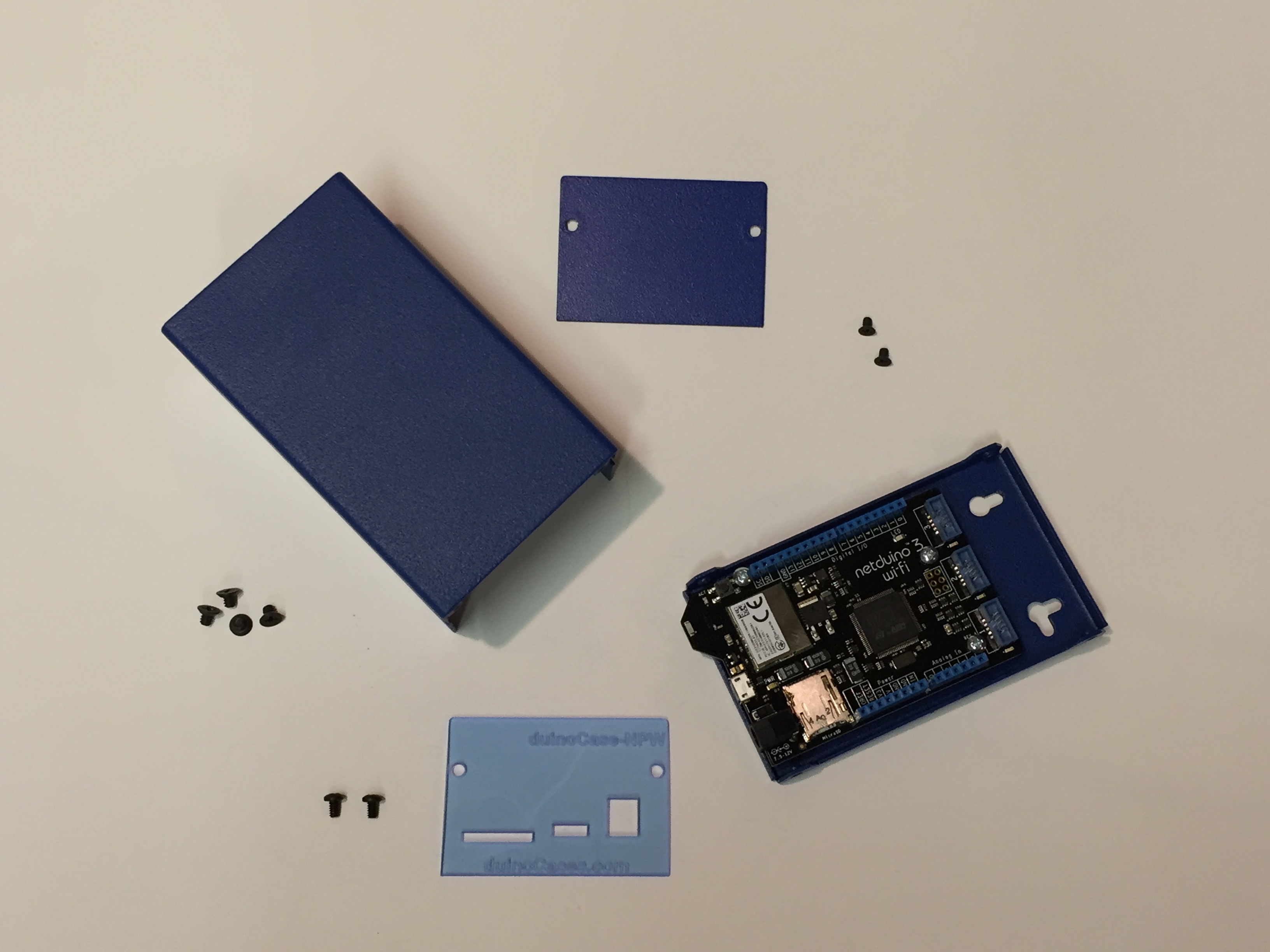

The duinoCase-NPW has been specially designed to hold the Netduino 3 Wifi board.  The front panel has been cut from a piece of fluorescent blue acrylic to be radio-transparent, and provide openings for the power receptical, USB connector, and Wifi chip antenna. There is room for on additional shield on top of the Netduino board. The base is slotted and drilled for easy wall mounting, or adding our optional DIN Rail Mount Kit. The enclosure includes stick-on rubber feet, along with the enclosure and board mounting screws. The enclosure is made from common 18 gauge cold rolled A366/1008 mild steel, with a PLT-40104 semi-gloss textured premiere blue coating. Dimensions of the enclosure are (approx.) 4.1″ L x 2.5″ W x 1.7″ H

  • Made in the USA
  • Custom design for the Netduino Plus, Netduino Plus 2, and Netduino 3 Ethernet
  • Commercial | Military | 18 Gauge Steel
  • Semi-Gloss Textured Coating
